Intensity Level

Flying Fun for the Whole Family

The Family Suspended Coaster offers a very unique ride experience for the whole family, because not only the legs of the passengers dangle freely under the seats of the vehicles, but also the seat carriers themselves are suspended from the chassis and swing in two directions, creating a flying experience with minimal lateral acceleration.

Thanks to the unique individual vehicles, extremely compact layouts with a real roller coaster feeling are possible for the first time on a suspended roller coaster - even on small footprints and in indoor locations.

More Information

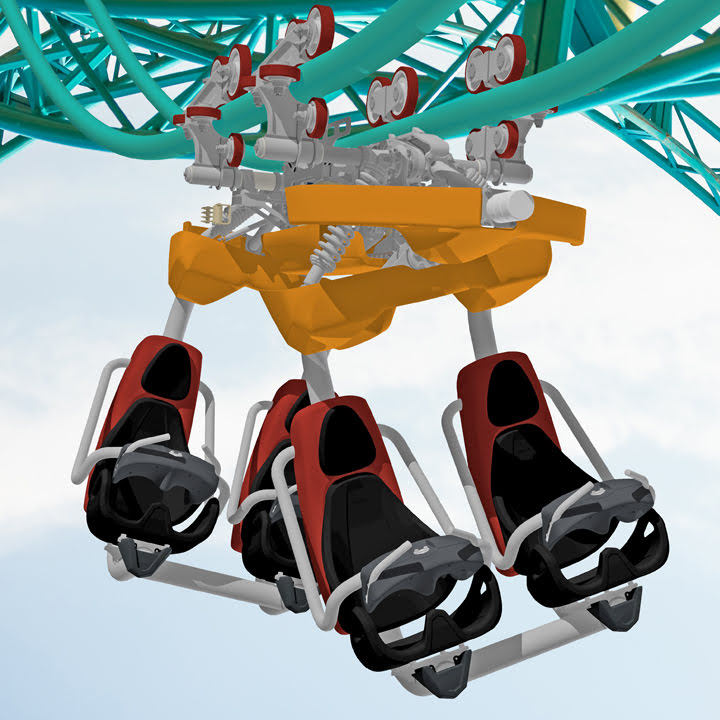

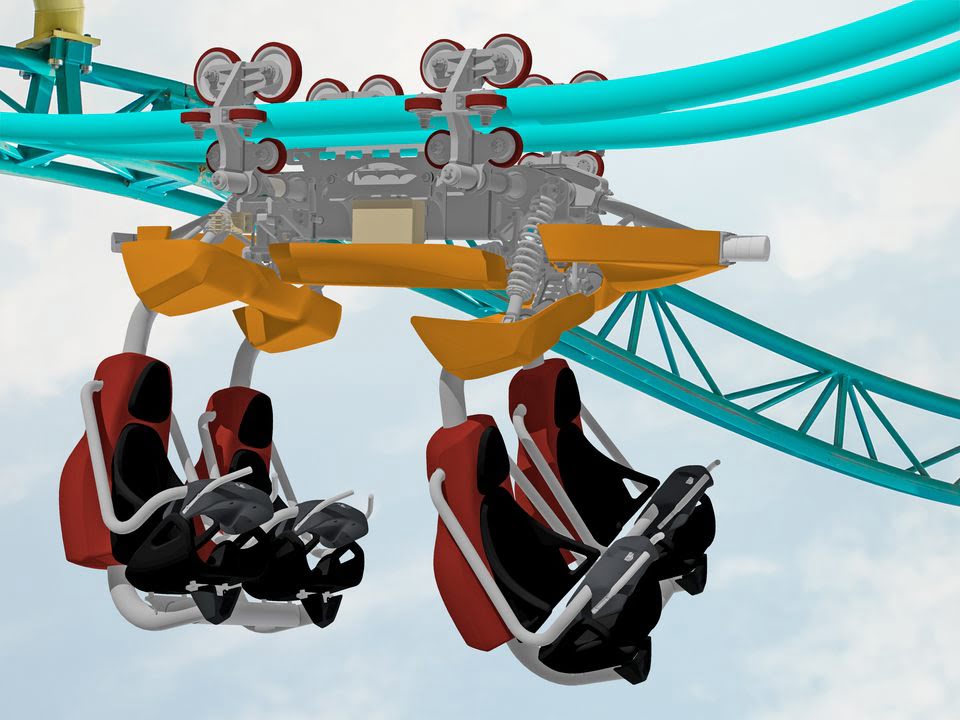

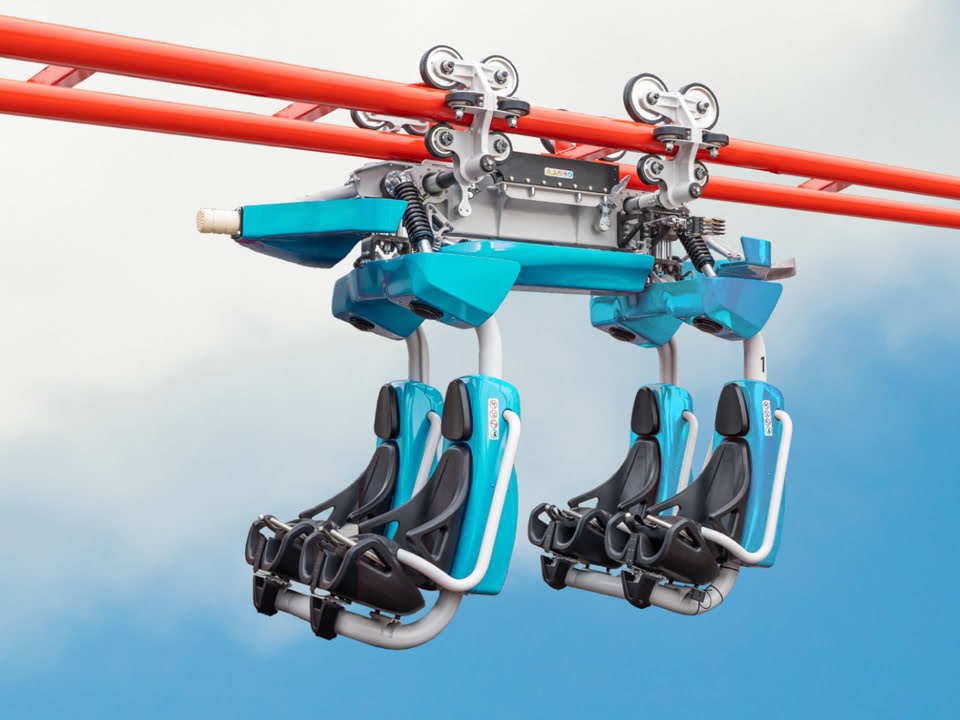

The vehicles of the Family Suspended Coaster offer a truly exceptional experience. During the ride, the four seats can swing together to the front and back, and each row of seats can swing separately to the left and right. This special feature brings a very unique dynamic to the ride, while accelerations to the front and side remain minimal.

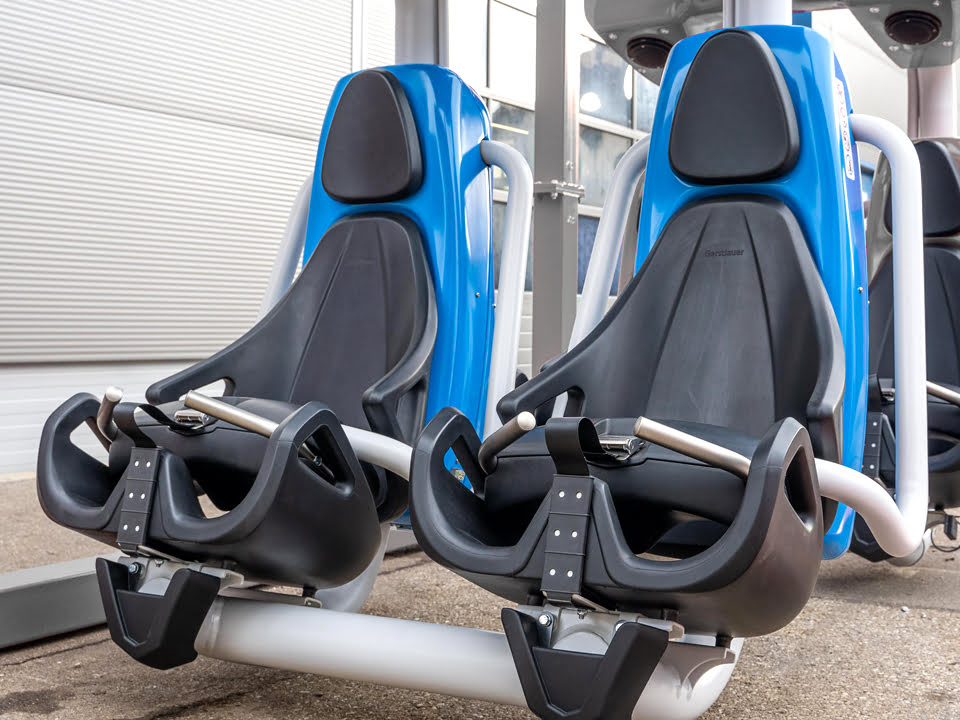

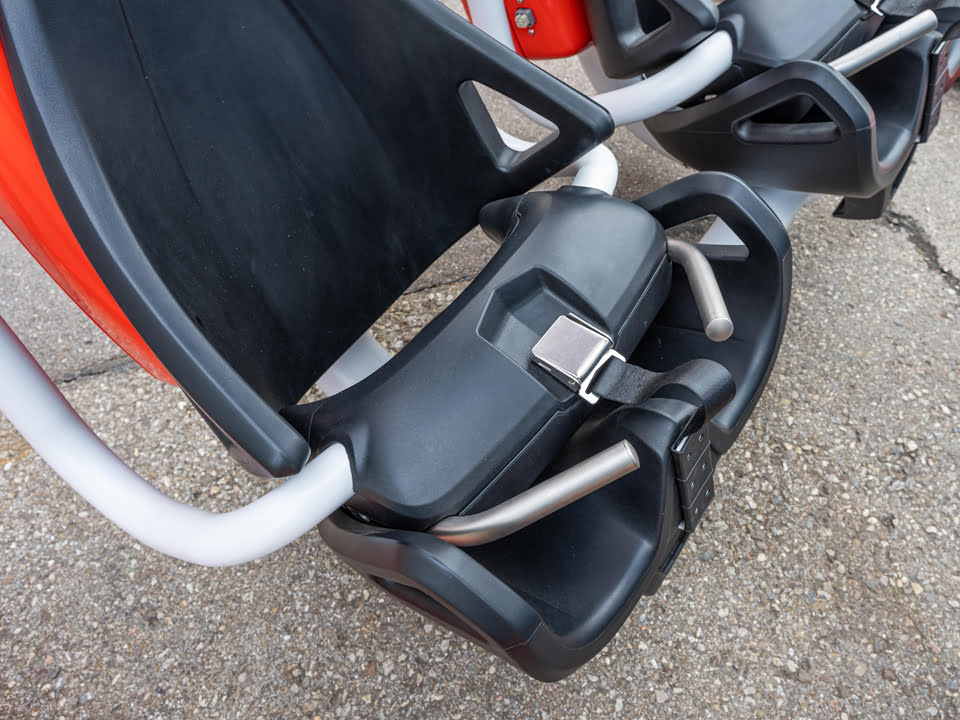

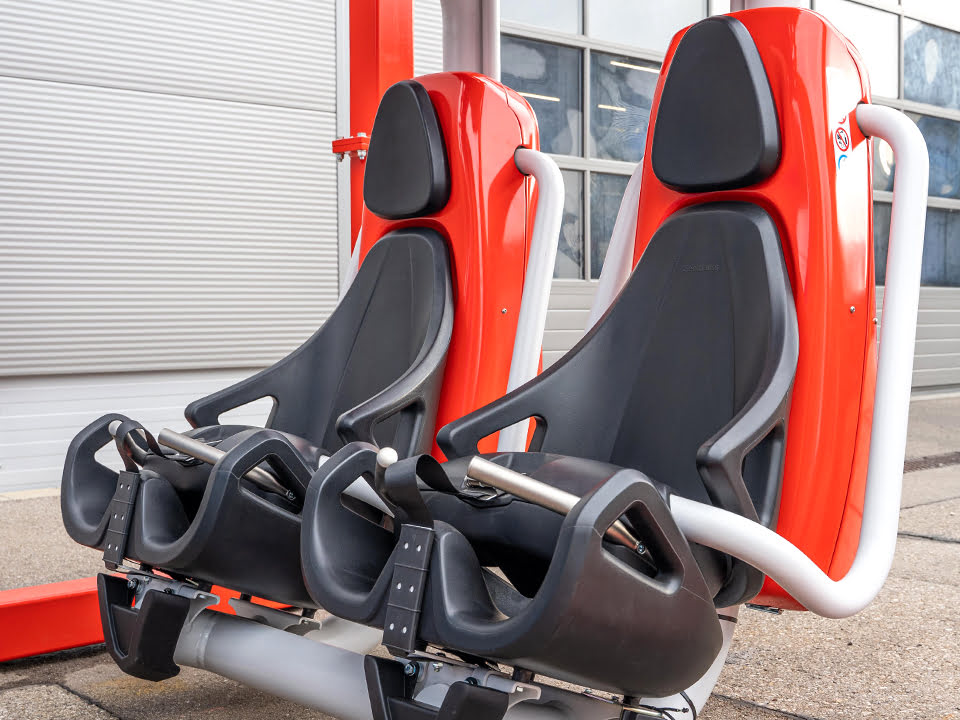

The single bucket seats incl. horn offer maximum comfort and freedom for all passengers. Both small and large passengers are held comfortably and securely by the step-less adjustable lap bars with redundant locking.

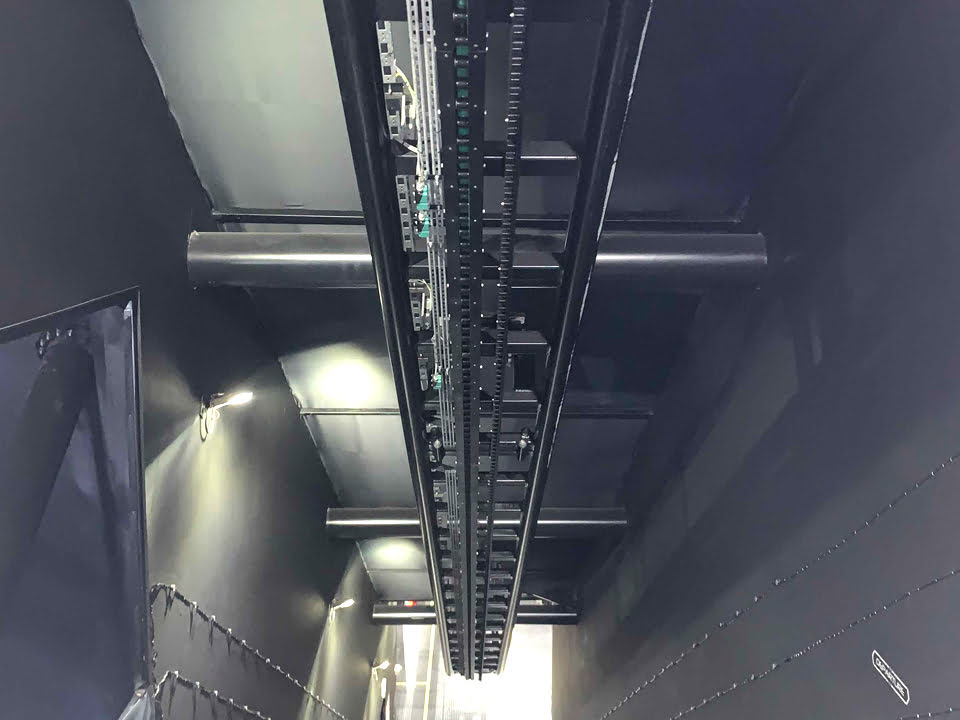

To reach airy heights, the Family Suspended Coaster uses a chain lift equipped with a noiseless anti-rollback. In addition to the classic lift, the individual vehicles can also be transported upwards using a vertical elevator, allowing further flexibility for designing individual layouts even on a small footprint.


Technical Details

To ensure safe operation and efficient maintenance, the Family Suspended Coaster has many features that allow an easy handling of the attraction, such as:

  • State-of-the-Art safety PLC

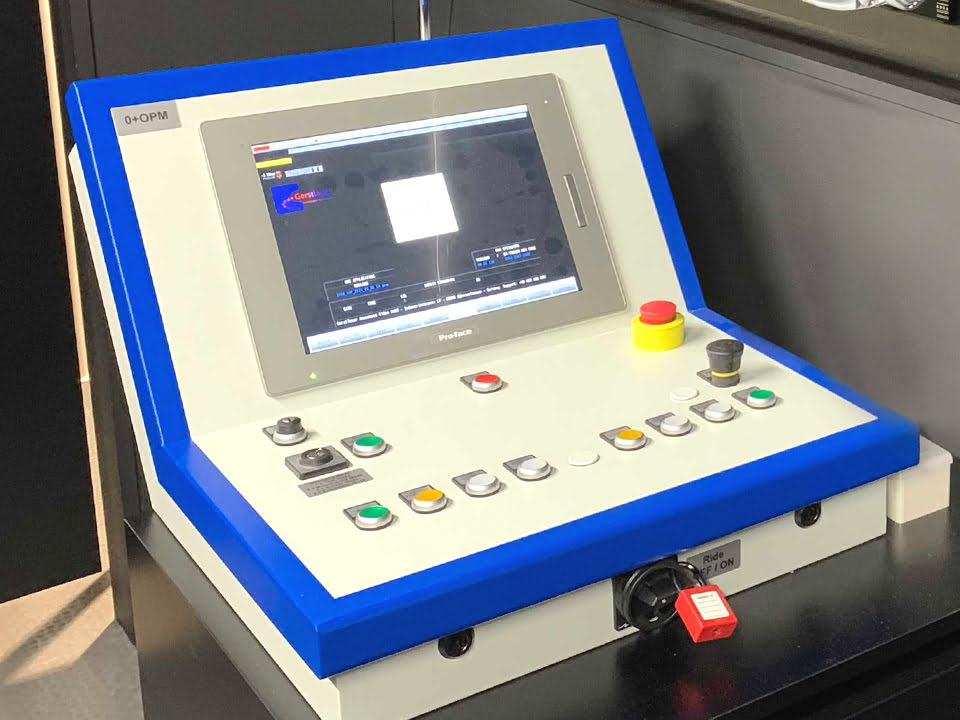

  • Operator panel incl. color touch display

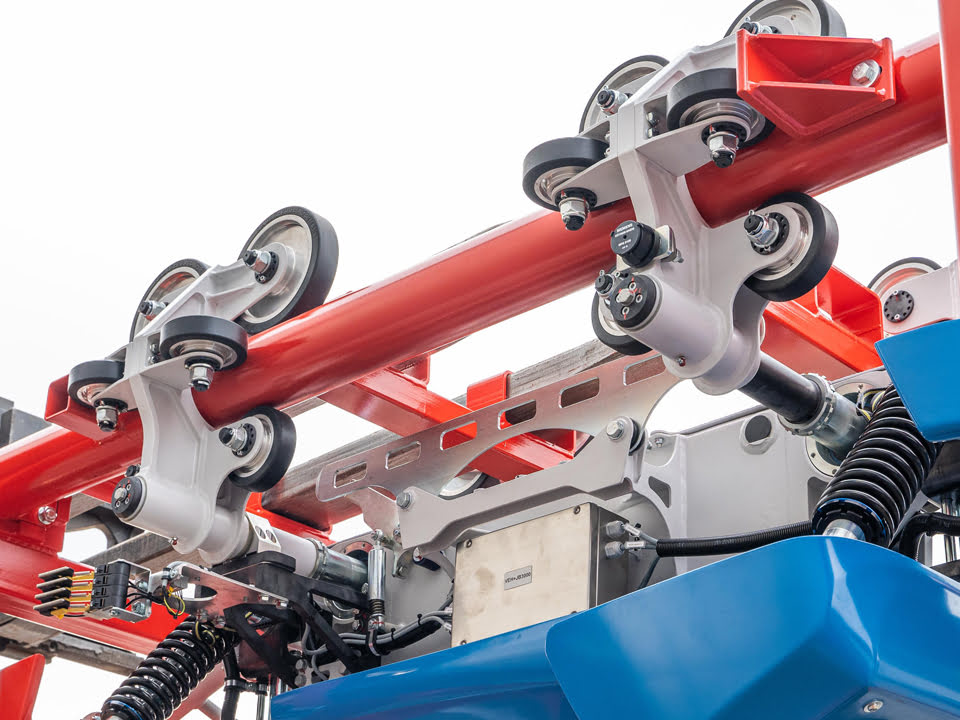

  • Easily adjustable running, side and upstop wheels for wear compensation
  • Adjustable spring-damper modules

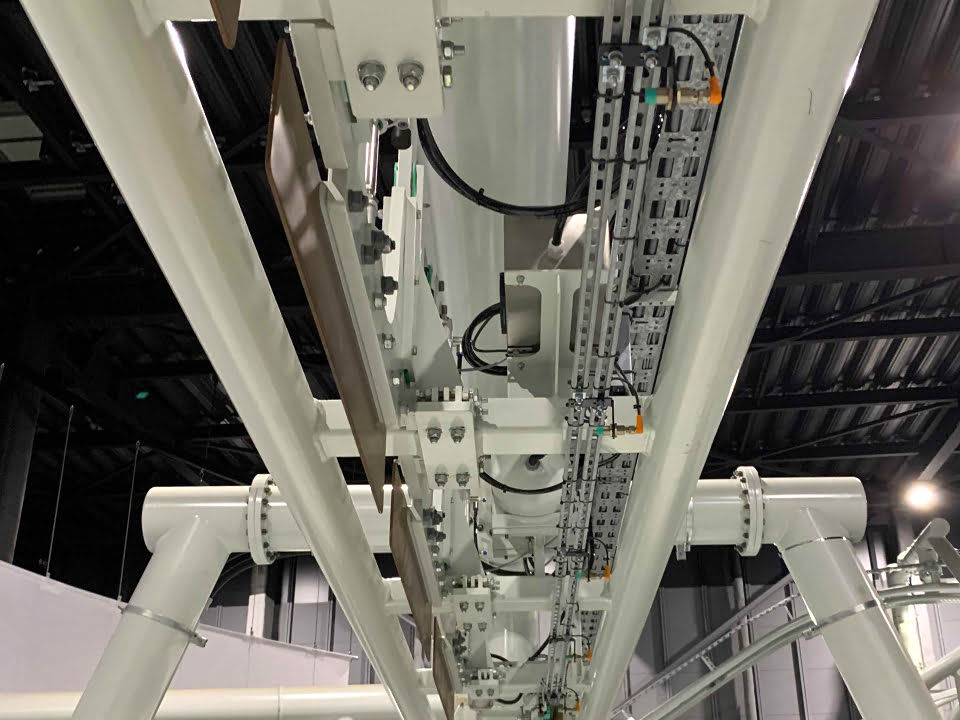

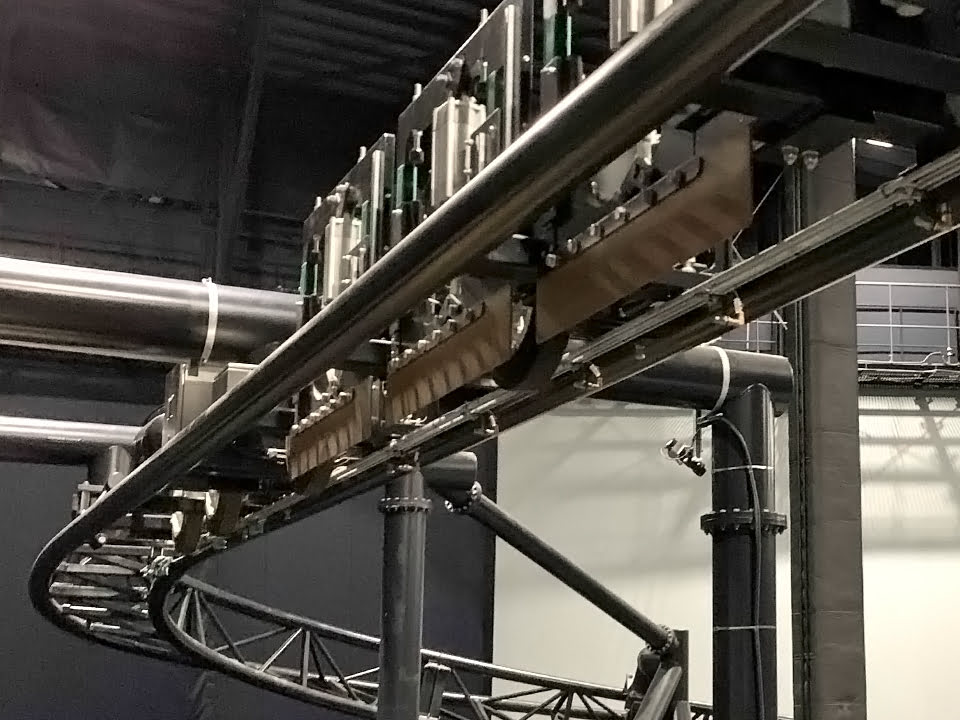

  • Wear-free magnetic reducing brakes
  • Noiseless anti-rollback dog with automatic function monitoring at each round

Theming Options

Whether as an impressive stand-alone attraction or as part of an extensively designed themed world: The individual theming options of the Family Suspended Coaster create the highest recognition value and perfectly convey the design of a themed area.

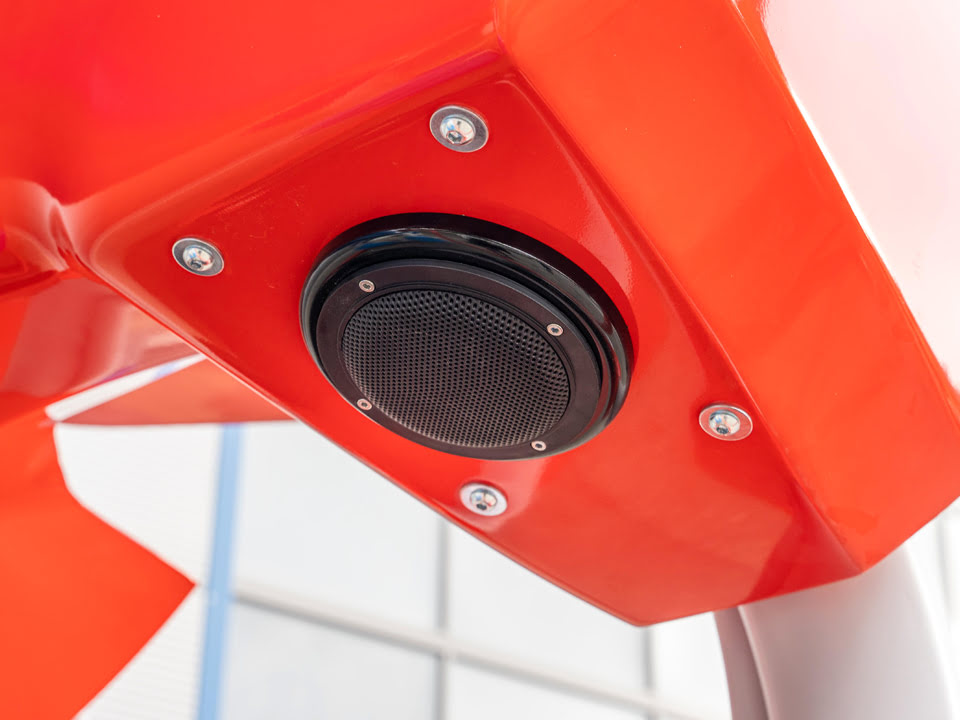

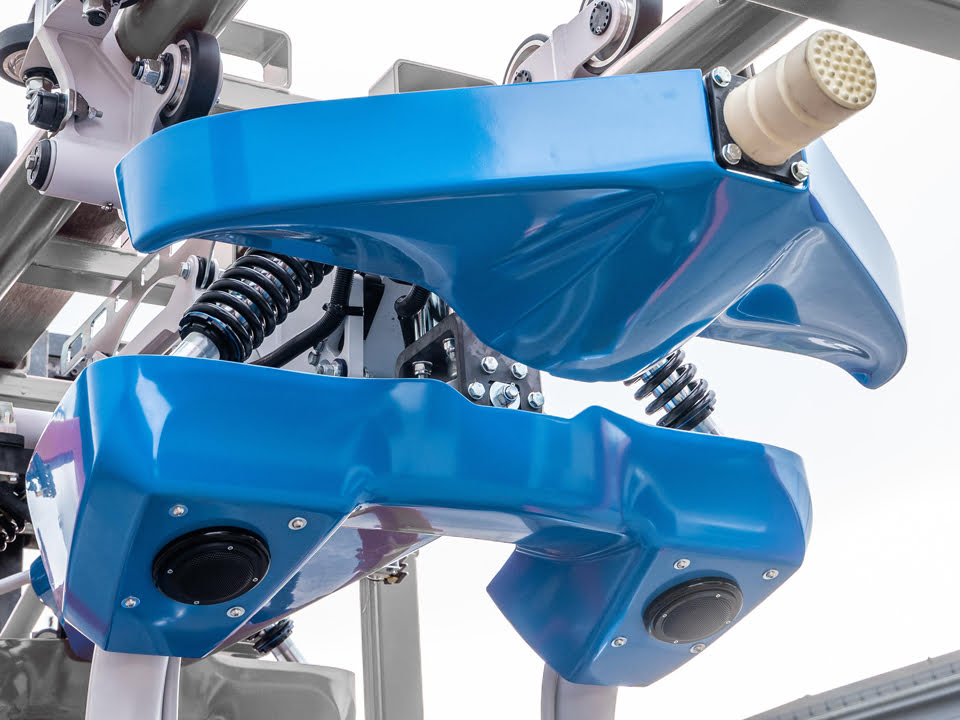

In addition to the customizable appearance, the vehicles can be equipped with on-board sound as well as lights, providing not only a family-thrill, but also a high-tech immersive experience.

Layout Example

Family Suspended Coaster 560

15.5 m / 51 ft
38 km/h / 24 mph
560 m / 1837 ft
Track Length
Width85 m / 279 ft
Depth36 m / 118 ft
Track Width800 mm
Vehicles (4 persons)7
Capacity480 pph
Connected Load160 kW


Layouts are available with foundation supports or on base frame.

We design individual and customized layouts upon request.

All figures are approximate. Design and specifications are subject to change.
