Intensity Level

Infinite Fun in Combination with Innovative Technology

No other roller coaster offers such infinite possibilities as the Infinity Coaster. From classic airtime layouts with a chain lift to inverting experiences as a multi-launcher - there are no limits for the Infinity Coaster.

Not only do the vehicles offer maximum comfort, smoothness and flexible customization options, but also the layout can be designed with special elements like vertical lifts, launches, switch tracks and rotating platforms to create a unique experience.

More Information

Trains

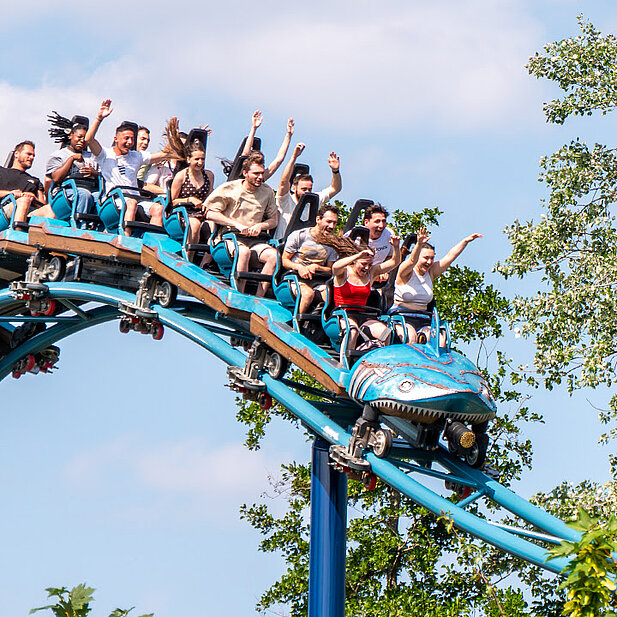

The vehicles of the Infinity Coaster are state-of-the-art. Thanks to their large wheel diameter and spring-loaded running, side and upstop wheels, they master high speeds with exceptional smoothness. Due to their agility, the vehicles easily maneuver through tight turns and can be configured as single vehicles for 8 persons as well as a train for up to 32 passengers.

The tripartite seating concept with its elevated seating position provides passengers a safe restraint and at the same time plenty of leg and arm freedom, as well as maximized comfort - floorless feeling inclusive! Regardless of the layout, continuously adjustable, newly developed lap restraints as well as classic shoulder restraints can be used.

Acceleration

The Infinity Coaster offers a variety of possibilities to let the passengers experience the sensation of speed. The chain lift can take the vehicles to the top at every possible angle, allowing both inclined and vertical lifts to be easily integrated into the layout. All chain lifts are equipped with the Gerstlauer-developed magnetic and silent rollback safety system, which allows the vehicles to be lowered backwards down the lift in the event of a power failure. This ensures safe and convenient evacuation of passengers at low heights.

In addition to the classic chain lift, passengers can also be accelerated into the layout by a powerful LSM launch, with single as well as pendulum and multi-launches possible. Thanks to the modular vehicle concept, all systems can be combined in one layout, ensuring that there are no limits to the fun.

Specials

With the ability to ride forwards and backwards, the Infinity Coaster not only offers the greatest potential for varied fun, but also shuttle layouts and layouts including open track ends are possible. Optional special elements provide a unique experience and can be combined individually, such as:

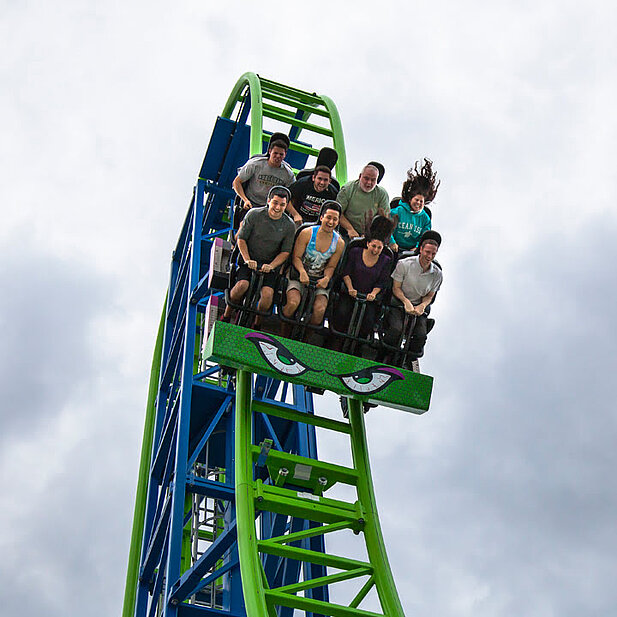

  • Beyond 90° Drop
  • Reverse Free Fall (on the Lift)
  • Holding Brake at the First Drop
  • Open Track End
  • LSM-Launch
  • Rotating Platform
  • Switch Track
  • and much more

Technical Details

To ensure safe operation and efficient maintenance, the Infinity Coaster comes with many features that allow an easy handling of the attraction, such as:

  • State-of-the-Art safety PLC
  • Operator panel incl. color touch display
  • Spring loaded running wheels with large diameter
  • Easily adjustable side and upstop wheels with adjustable suspension
  • Wear-free magnetic brakes
  • Contact-free acceleration by linear synchronous motors
  • Silent magnetic rollback safety system for chain lifts
  • Possibility to reverse the chain lift for evacuation at the bottom of the lift

Theming Possibilities

Whether as an impressive stand-alone attraction or as part of an extensively designed themed world: The individual theming options of the Infinity Coaster create the highest recognition value and perfectly convey the design of a themed area.

In addition to the customizable appearance, the vehicles can be equipped with on-board sound as well as lights, providing not only a high-thrill, but also a high-tech immersive experience.

Layout Examples

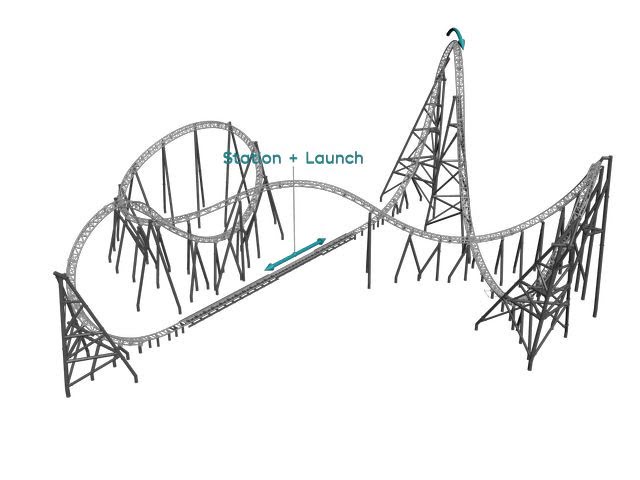

Launched Infinity Coaster 400

32 m / 105 ft
Height
90 km/h / 56 mph
Speed
400 m / 1312 ft
Track Length
Experienced Track Length600 m / 1967 ft
Width78 m / 256 ft
Depth66 m / 216 ft
Track Width1200 mm
Vertical Acceleration min.-0.7 g
Vertical Acceleration max.4.4 g
Inversions2
Trains (20 persons)1
Capacity800 pph
Connected Load
with energy storage
1500 kW
300 kW

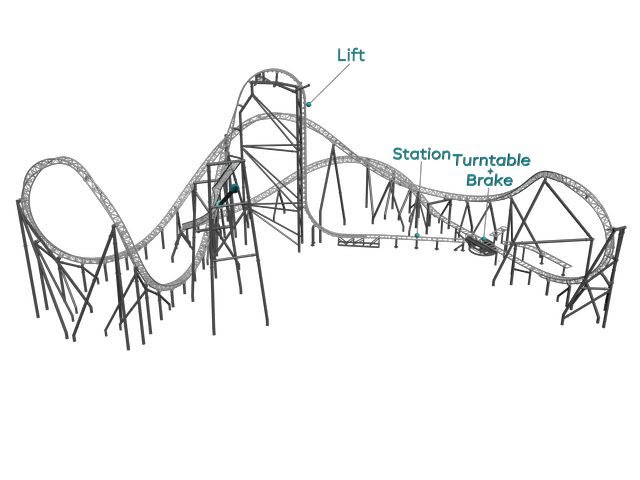

Infinity Coaster 460

31 m / 102 ft
Height
84 km/h / 53 mph
Speed
460 m / 1312 ft
Track Length
Experienced Track Length575 m / 1886 ft
Width83 m / 272 ft
Depth55 m / 180 ft
Track Width1200 mm
Vertical Acceleration minimal-0.9 g
Vertical Acceleration maximal4.4 g
Inversions3
Trains (12 persons)2
Capacity600 pph
Connected Load

210 kW

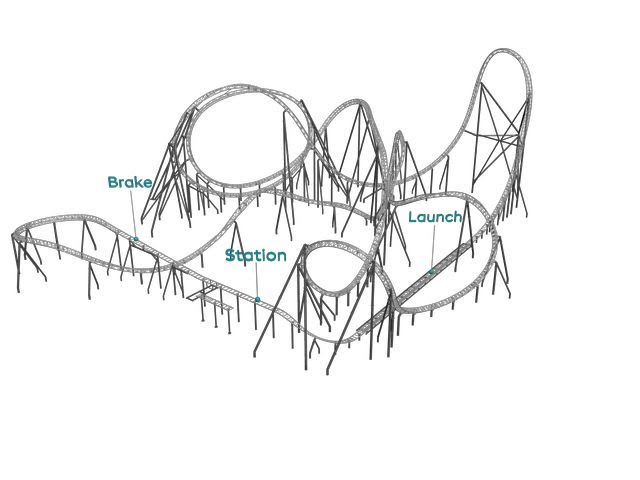

Launched Infinity Coaster 860

43 m / 141 ft
Height
105 km/h
/ 66 mph
Speed
860 m / 2821 ft
Track Length
Width120 m / 394 ft
Depth83 m / 272 ft
Track Width1200 mm
Vertical Acceleration min.-0.9 g
Vertical Acceleration max.4.5 g
Inversions5
Trains (8 personen)3
Capacity600 pph
Connected Load
with energy storage
1500 kW
300 kW

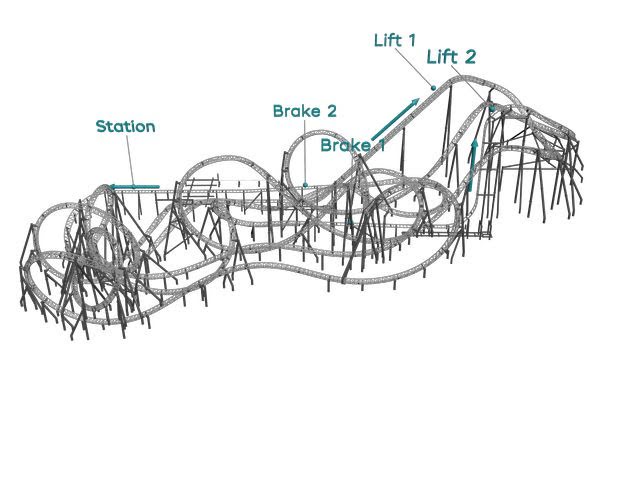

Infinity Coaster 1140

35 m / 115 ft
Height
85 km/h / 53 mph
Speed
1140 m / 3739 ft
Track Length
Width120 m / 394 ft
Depth50 m / 164 ft
Track Width1200 mm
Vertical Acceleration min.-0.9 g
Vertical Acceleration max.4.6 g
Inversions14
Trains (16 persons)5
Capacity1200 pph
Connected Load400 kW









We design individual and customized layouts upon request.

All figures are approximate. Design and specifications are subject to change.
